Hyper-V Replica Reverse Replication with Certificate Authentication ‘Hyper-V failed to establish a connection with the Replica server ‘‘ on port ‘443’. Error: The connection with the server was terminated abnormally (0x00002EFE).’

While working on my most recent Hyper-V Replica PowerShell script when attempting to reverse replication from a source Hyper-V host to the a target host using Certificate authentication I was getting the error message…

Hyper-V failed to establish a connection with the Replica server ‘<target hostname>’ on port ‘443’. Error: The connection with the server was terminated abnormally (0x00002EFE).

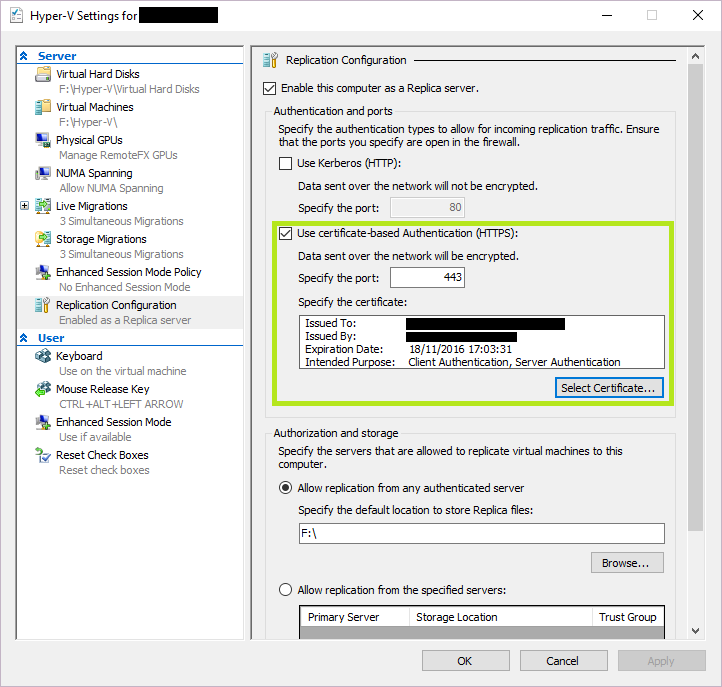

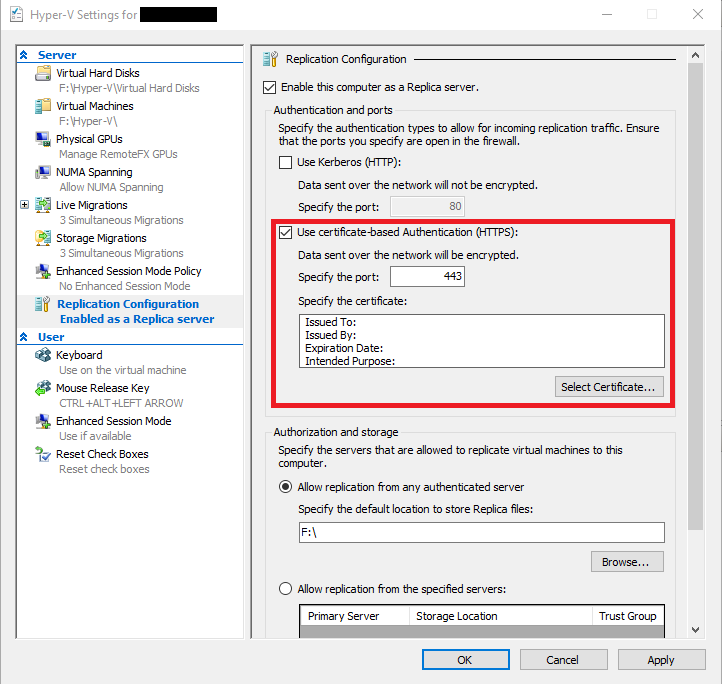

As it turns out I had recently deleted and created a new certificate for the target host and as such there was no certificate listed in Hyper-V Settings > Replication Configuration. The fix was to set the replacement certificate in the box provided. See the screenshots below for a little more…
