This final network is quite possibly the ones that most Schools will shy away from on grounds of ‘security’ – where I work however that just isn’t an option as we have paying users of the school facilities right the way through the evening and weekends. Indeed the weekend after we put this public network in place we have ~110 users on the network all of which were taking part in a chess competition that was being held at the Academy.

James stop rambling and get on with the guide…

So for the Public WiFi network the objective is to provide guests with a shared key (which is changed regularly) to access the network and to be able to use the internet without putting in any web proxy settings.

Smoothwall

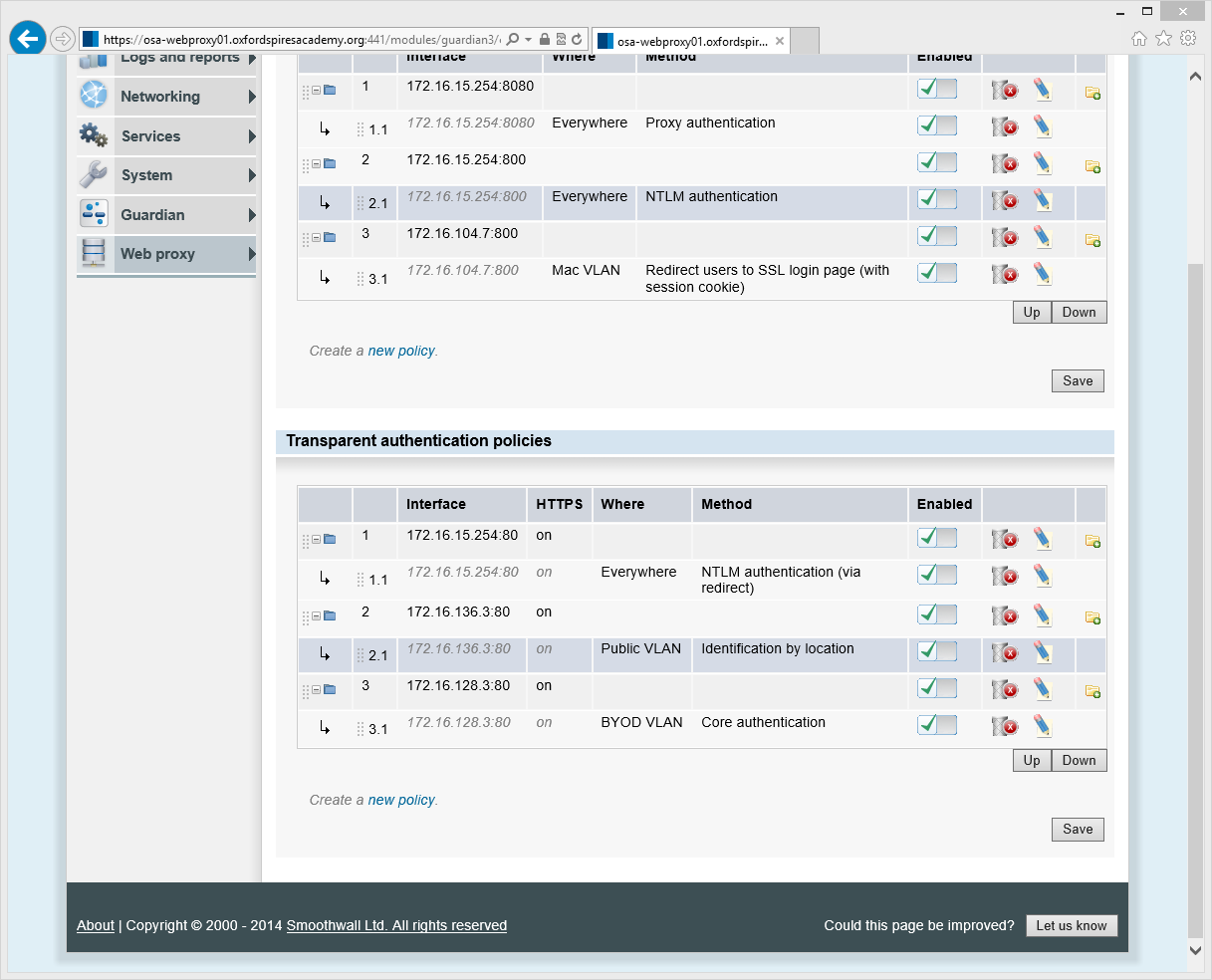

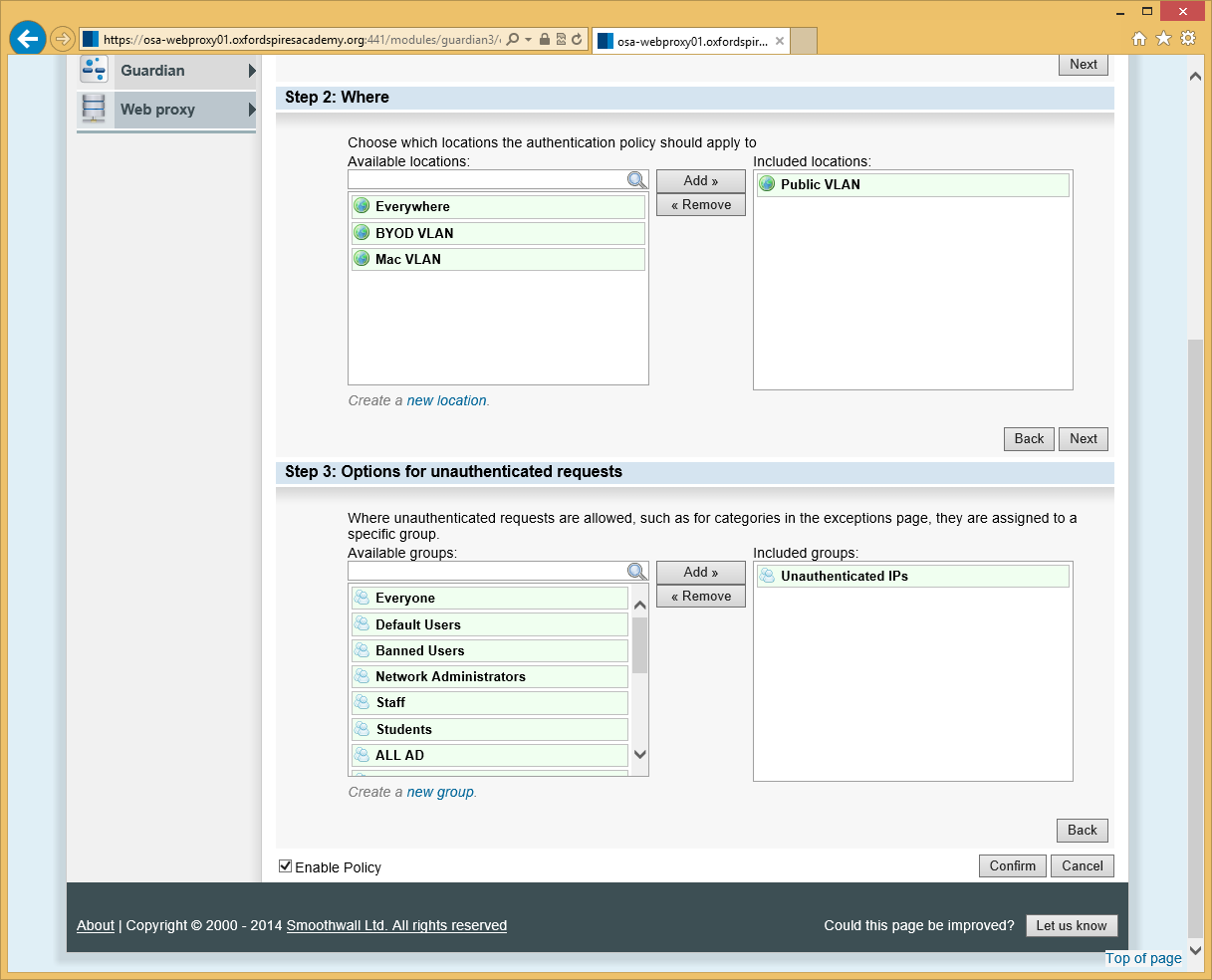

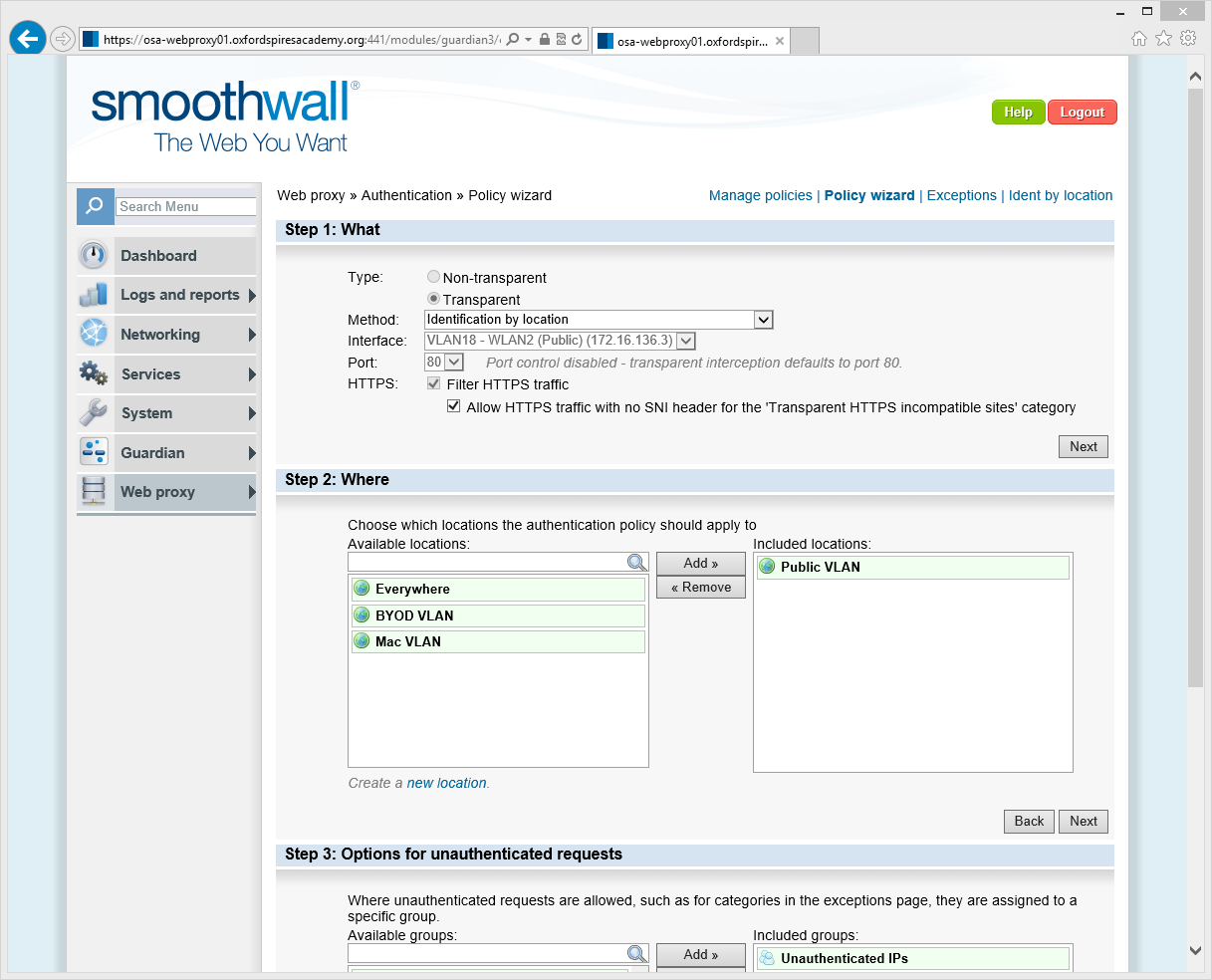

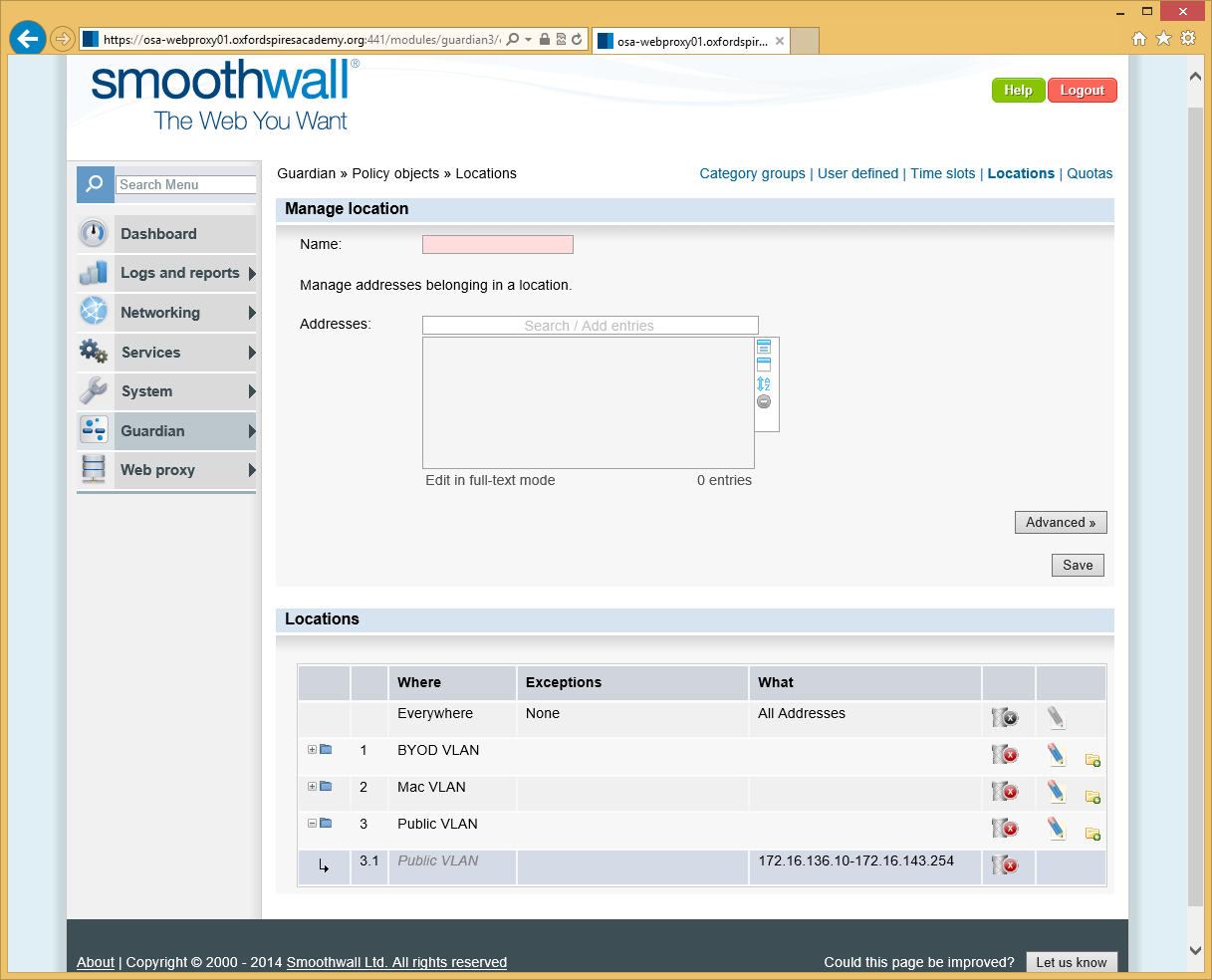

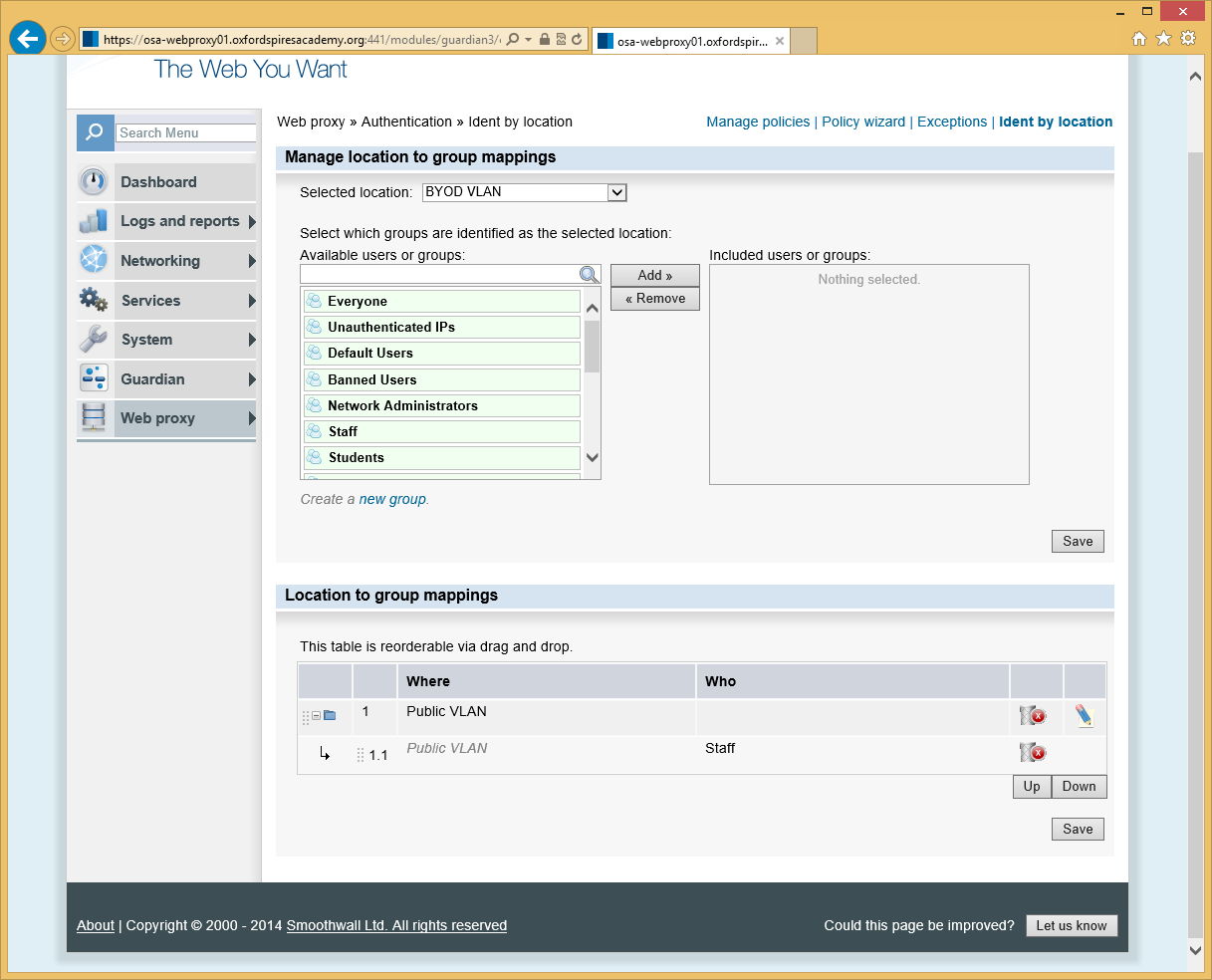

As per with the BYOD network you must have the Smoothwall configured with a virtual adapter which sits in the Public VLAN (details here –https://myworldofit.net/?p=6473) before carrying on with this guide. The screen shots below cover the configuration required…

Windows DHCP Server

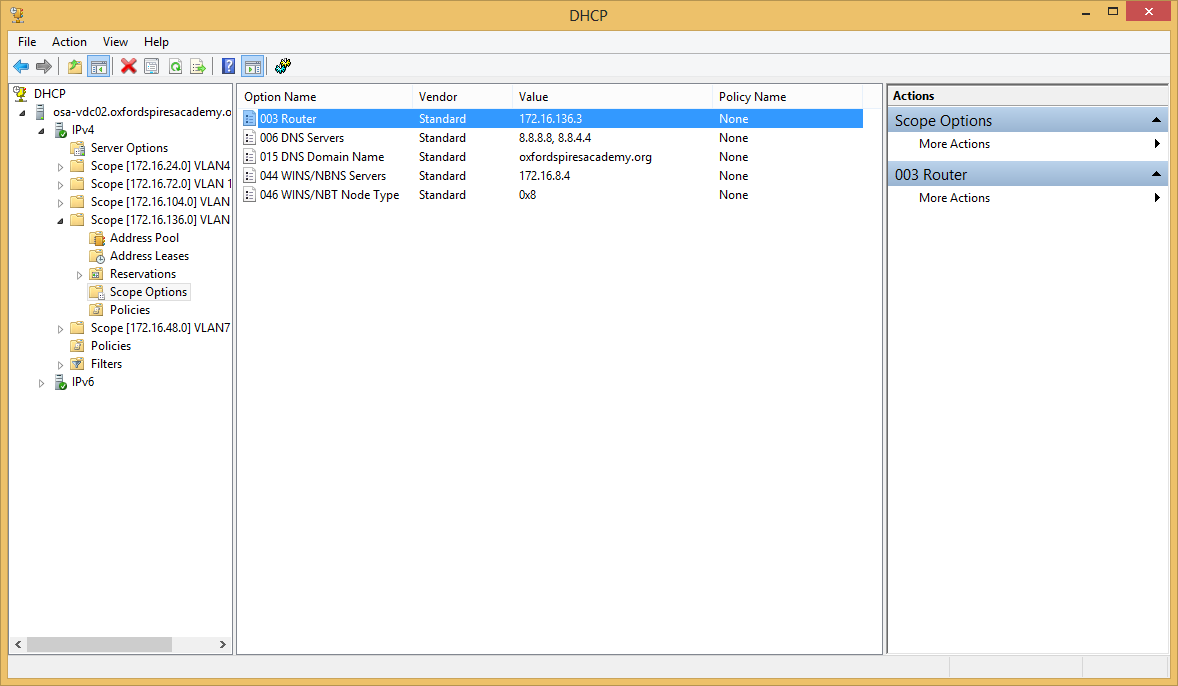

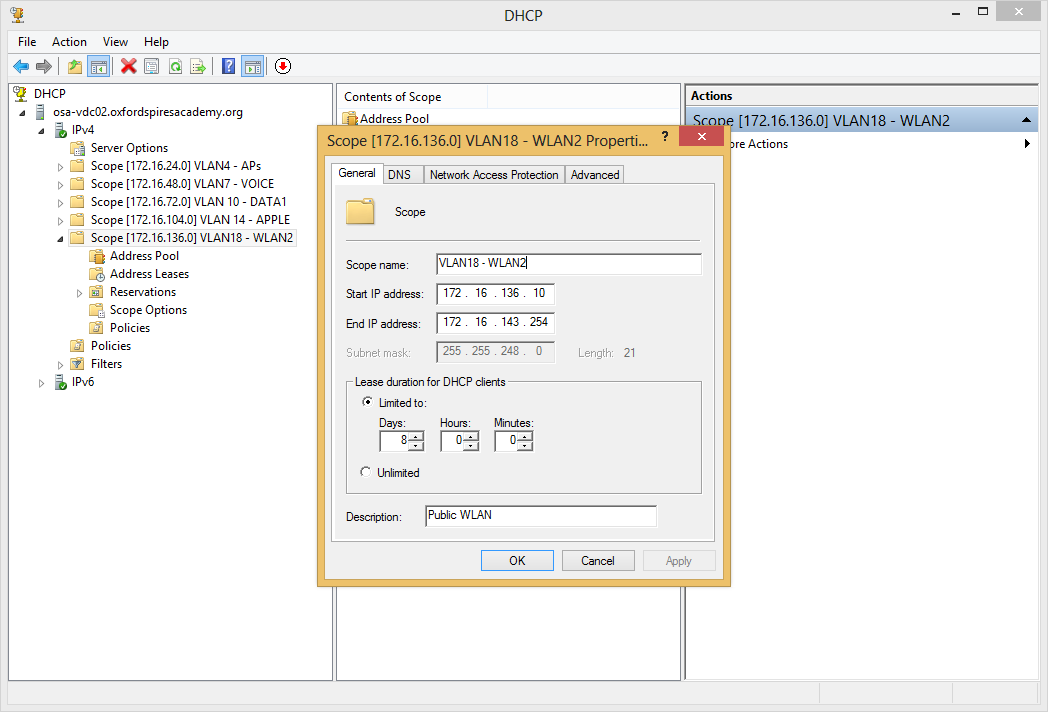

Next up you must configure your Windows DHCP server to provide the clients with their IP addresses…

HP MSM

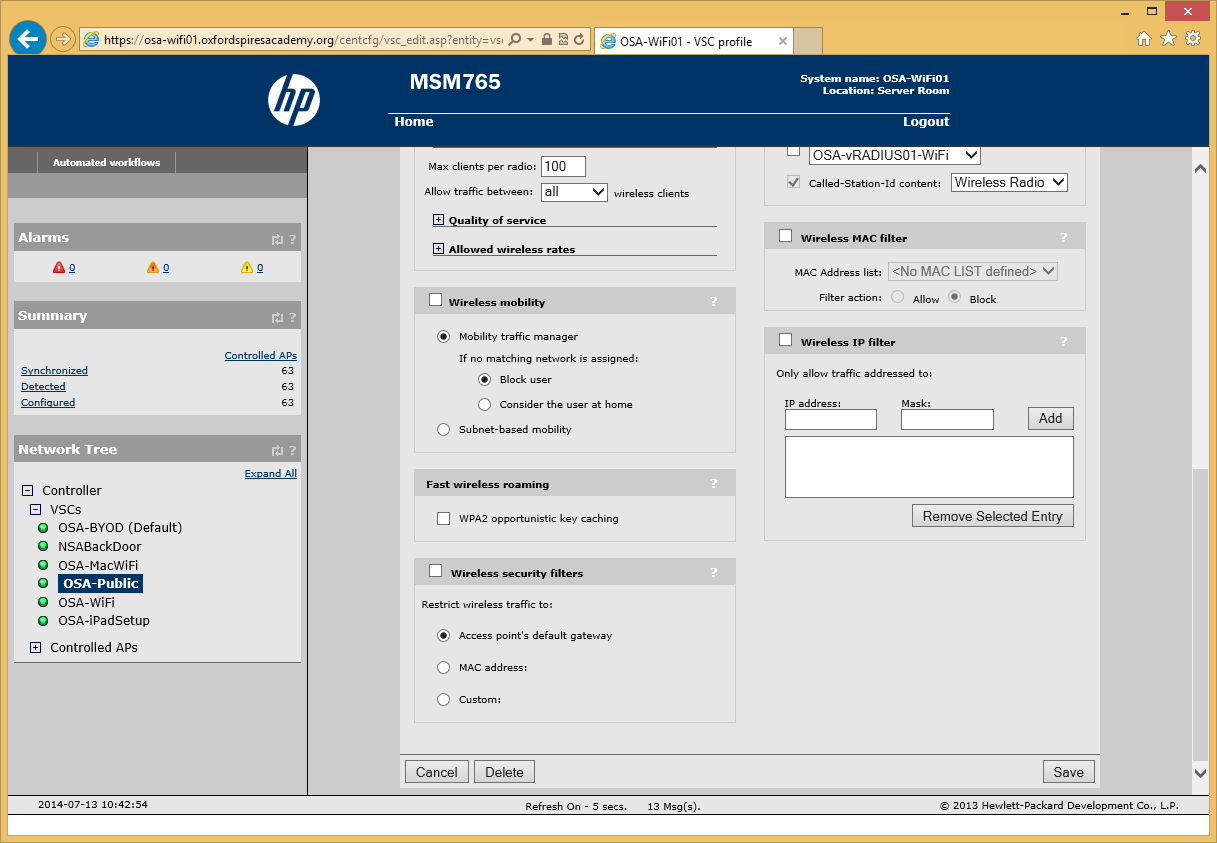

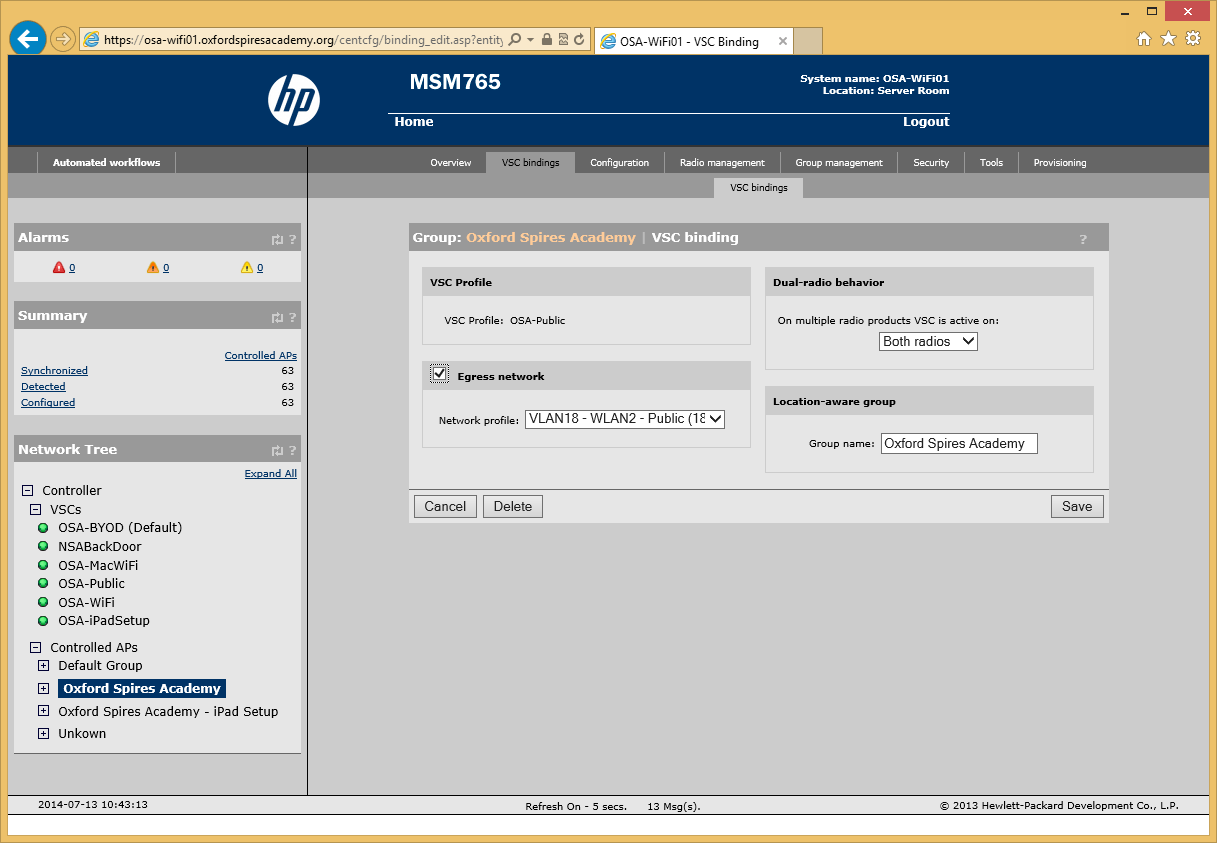

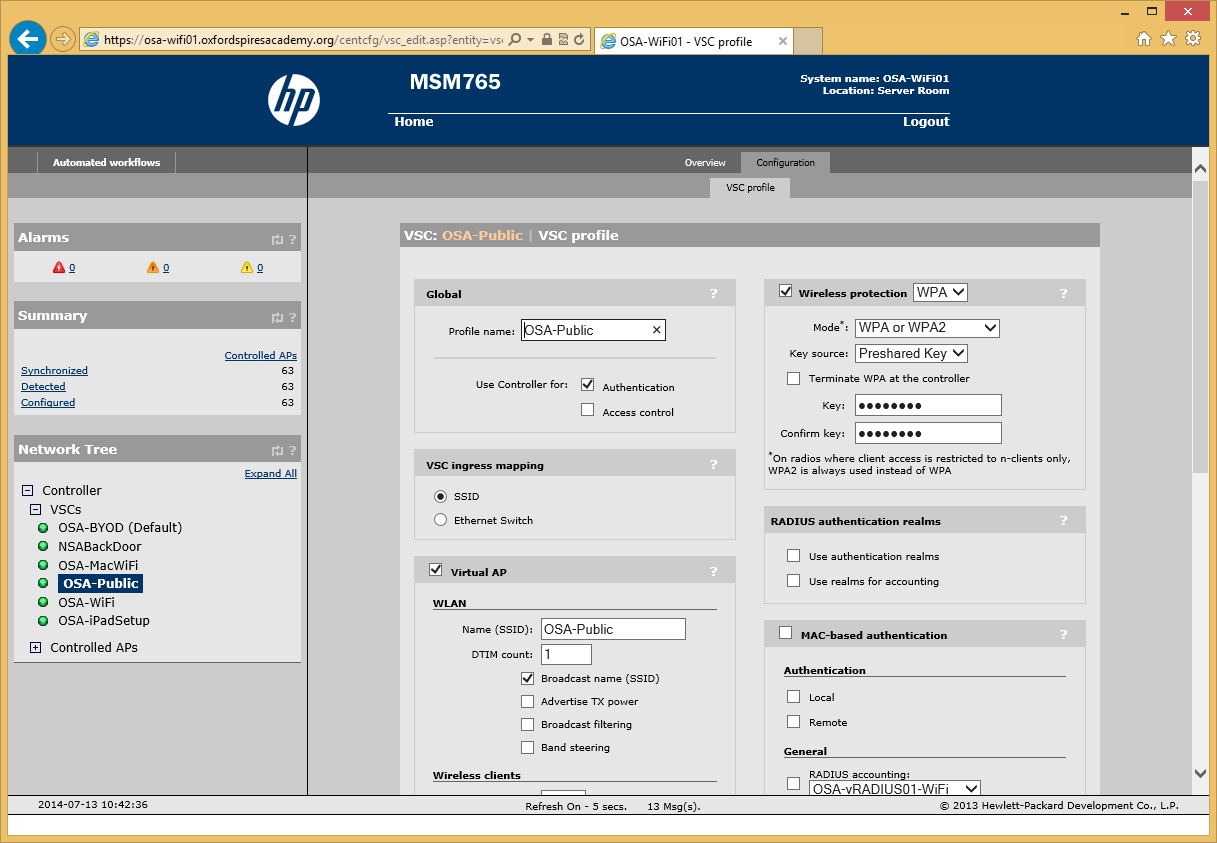

The configuration on the HP MSM for this network is as easy as setting up the Mac Wi-Fi VLAN as I will just be using a pre shared key that is changed regularly. However there are plenty of other options available like a captive web portal or single use keys (Meraki have a pretty funky option where you are forced (or just directed to) to ‘like’ a Facebook page before you are authenticated onto the network).

Zone Bridging

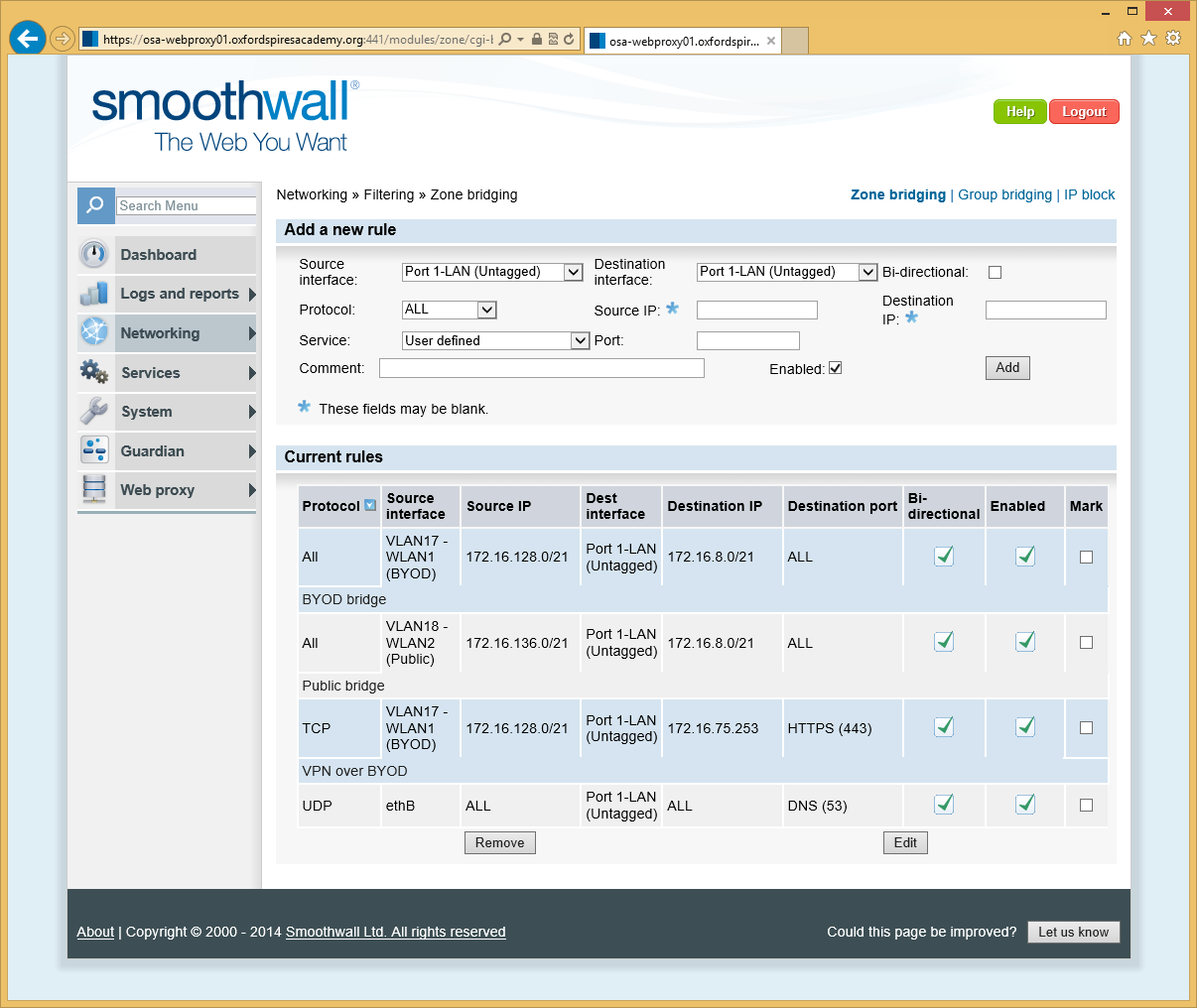

Finally as part of the configurations for the BYOD and Public networks because we are using the Smoothwall (and not our internal router) as the default gateway we need a method to allow what are 3 separate networks (BYOD/Public/Internal) to communicate with each other. On Smoothwall firewalls this is called Zone Bridging. N.B. – To configure zone bridging you need to have the Zone feature installed as a module (System > Maintenance > Modules).

That’s all folks!

Here ends this series of posts; hopefully they have given you an interesting insight into one (of many) ways to configure a WiFi network inside a School (or indeed any workplace). Please note that for specific help on the Smoothwall side your best bet will be to get a hold of Smoothwall direct and for support on HP wireless networks you will probably need to get a VAR involved.
