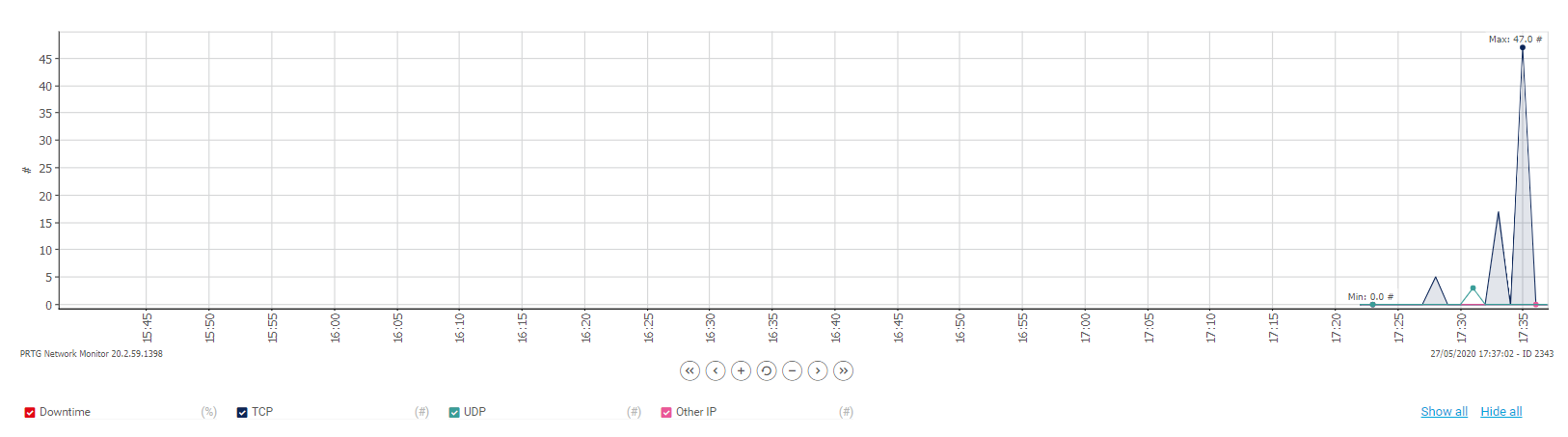

If you are looking to build out Zone Protection Profiles on your Palo Alto Networks Next Generation Firewall then it can be handy to know just what your connections per second metrics look over time for each zone. Quite lucky Palo Alto Networks have a little (although not entirely descript) guide on where you can get this data – https://docs.paloaltonetworks.com/pan-os/9-1/pan-os-admin/zone-protection-and-dos-protection/zone-defense/take-baseline-cps-measurements-for-setting-flood-thresholds/how-to-measure-cps.html.

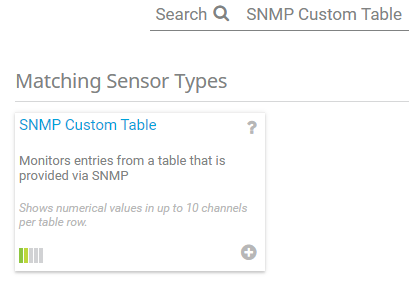

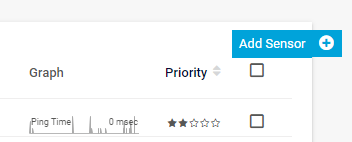

With that information in hand it was just a matter of time before working out how to collect this data through PRTG so do follow on with the screenshot guide to find out how!
Handy strings:

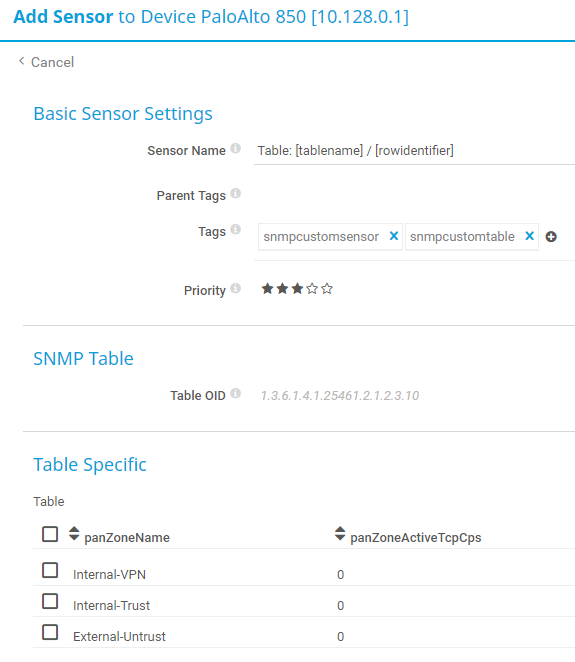

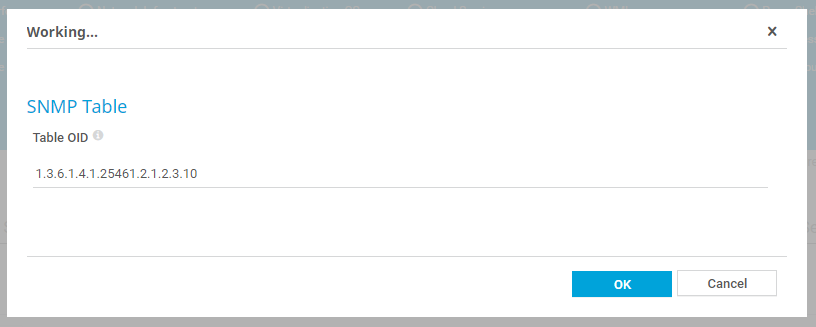

1.3.6.1.4.1.25461.2.1.2.3.10

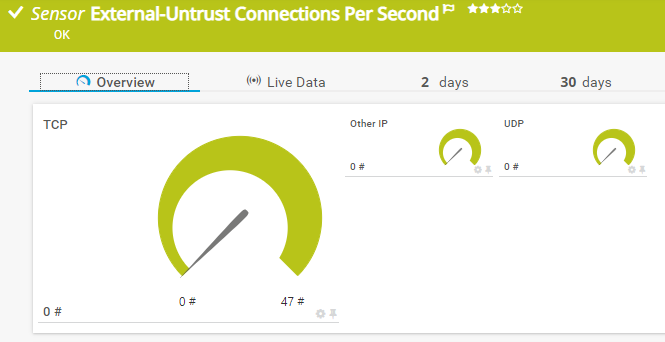

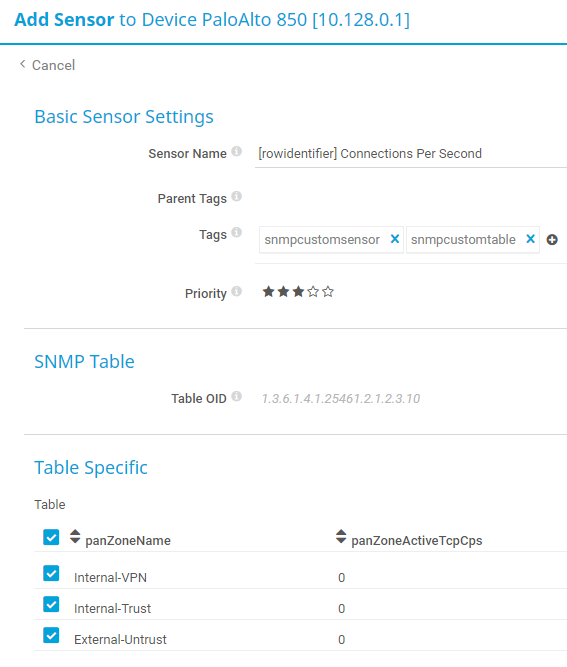

[rowidentifier] Connections Per Second

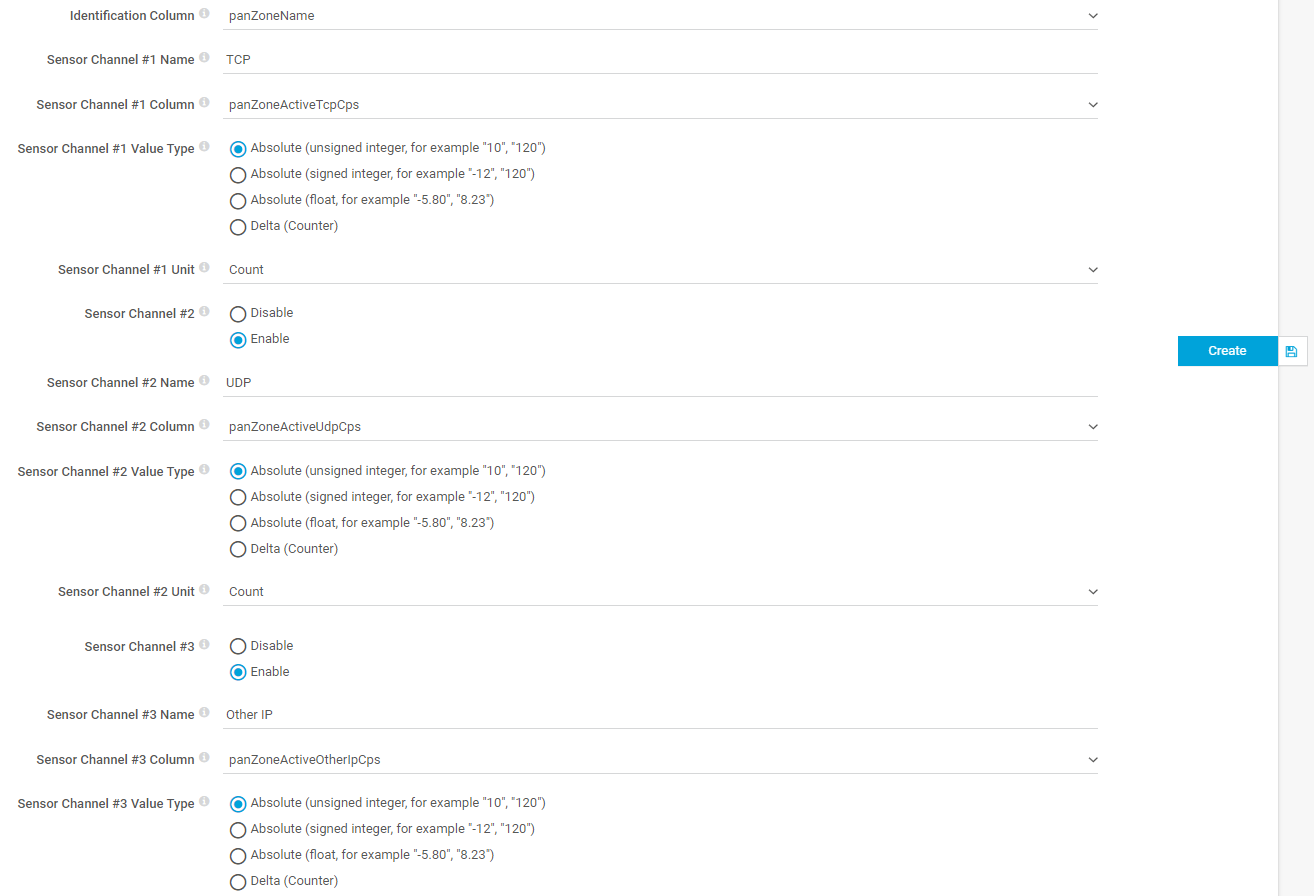

TCP
UDP
Other IP
Some more information on Zone Protection/Flood Protection: https://docs.paloaltonetworks.com/pan-os/9-1/pan-os-web-interface-help/network/network-network-profiles/network-network-profiles-zone-protection/flood-protection.html Thumbs up if this article helped you 🙂 PAN-OS and Connections Per Second in PRTG,
