Front Ports

Picture 1 of 5

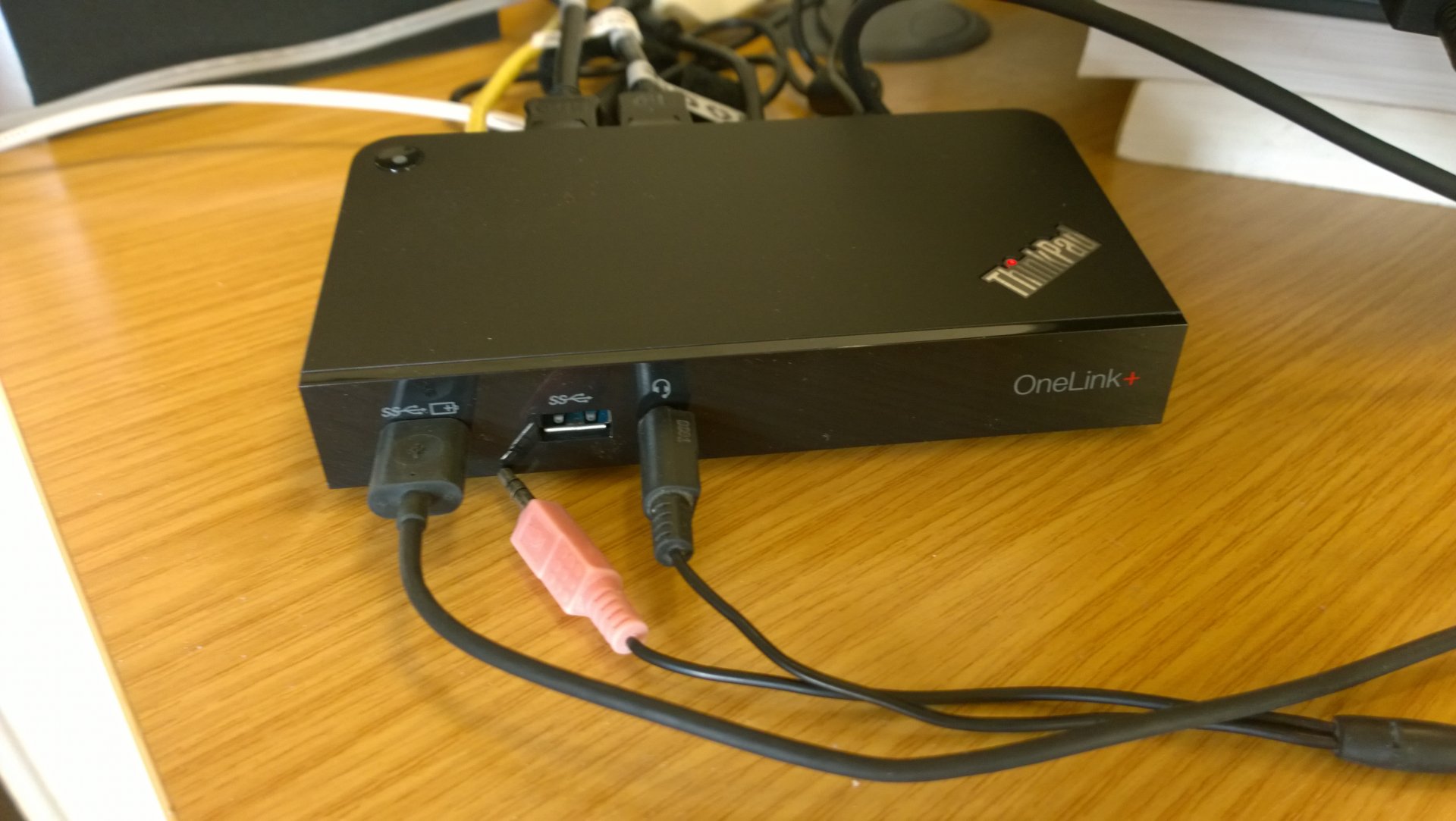

The dock from the front; 2x USB ports (1 of which is powered) and the combined speaker/mic audio jack.

Is the desktop dead yet? Well with the 4th Gen Lenovo X1 Carbon (i5-6300U/8GB/256GB) and the ThinkPad OneLink+ Dock it might as well be! This powerful little dock has just a single cable to plug into your laptop which provides power and connectivity to the dock.

For connectivity the dock includes

  • On the front…
    • Stereo/microphone audio combo port on the front
    • 2x USB 3.0 ports on the front one of which is ‘always on’ powered – great for charging up your phone

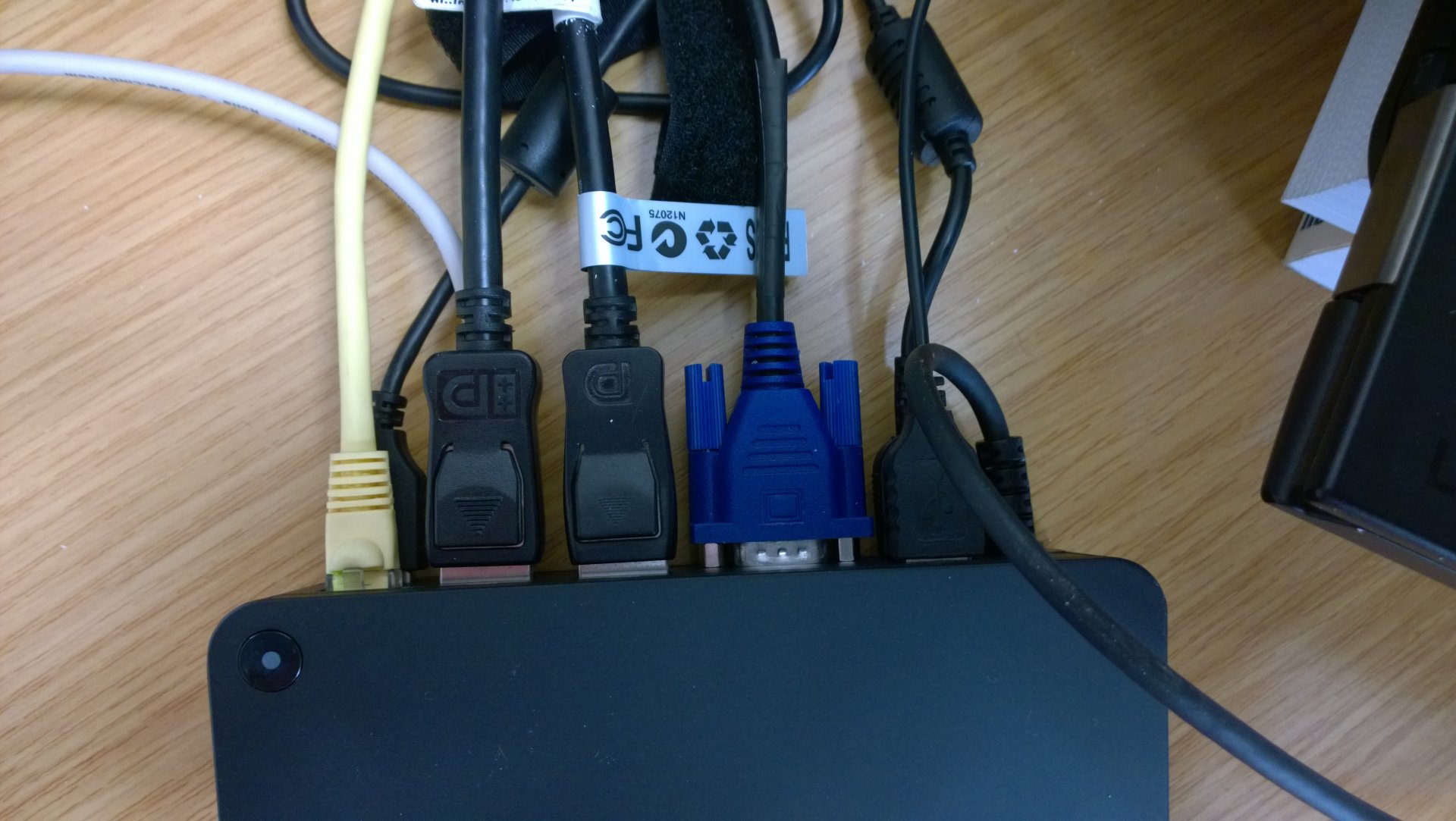

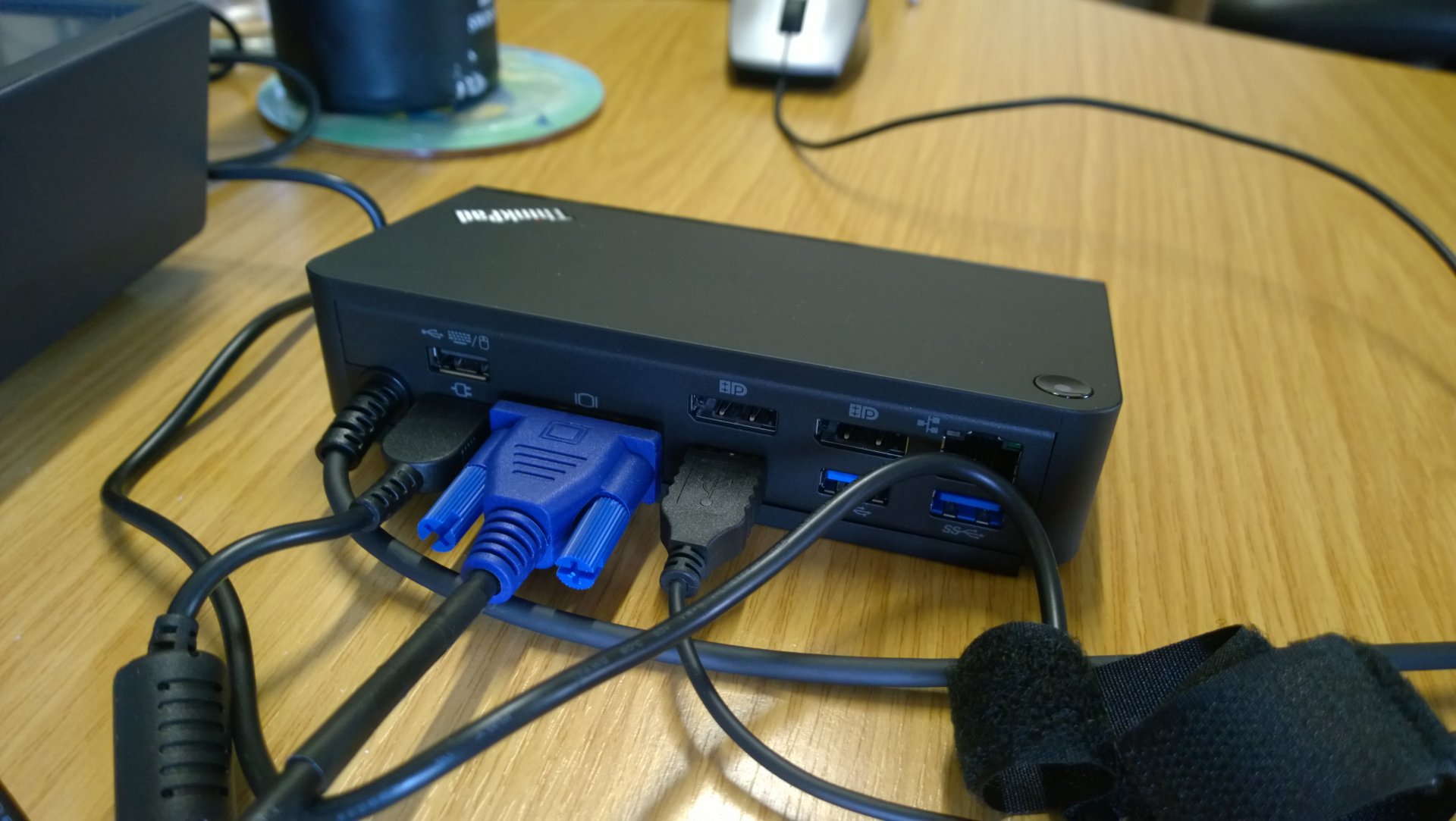

  • On the back…
    • 2x USB 2.0 ports (or as I now call them ‘Keyboard and Mouse ports’)
    • 2x USB 3.0 ports
    • 1x Gig Ethernet port
    • 1x VGA port
    • 2x (full sized) Display Port 1.2 ports

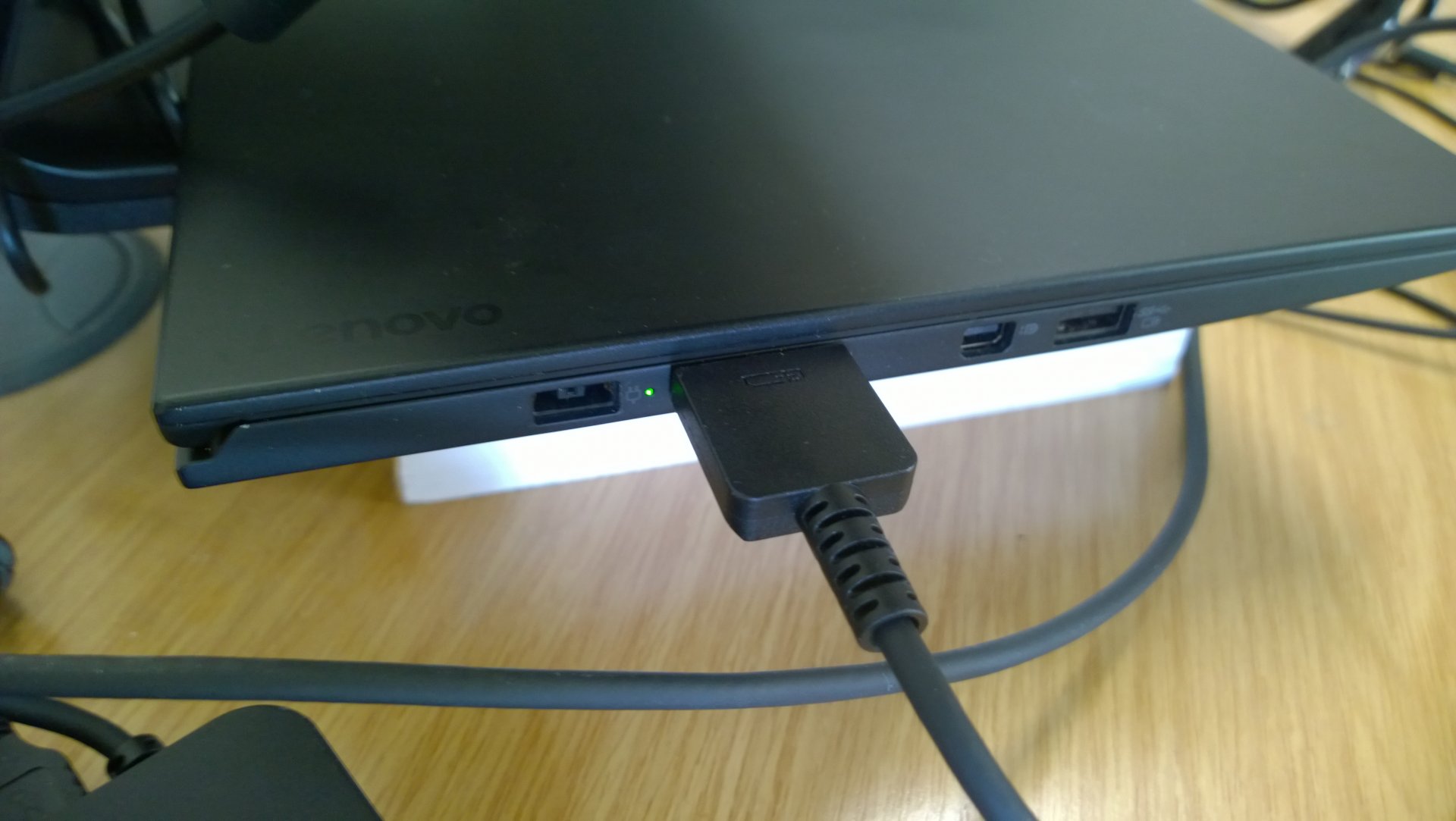

    • Cable to your laptop
  • On the side…
    • Kensington cable lock

Compatibility

Going by the Lenovo website (Super long Lenovo link) this dock will work with the ThinkPad X1 Tablet, ThinkPad P40 Yoga, ThinkPad Yoga 14, ThinkPad Yoga 260, ThinkPad Yoga 460, X1 Carbon (4th gen), X1 Yoga.

Some super awesome little features that have really helped

  • Power on button for the laptop on the dock – even with the screen closed it’ll power on your laptop (just too bad with the screen closed I can’t get to the fingerprint reader!)
  • With the Ethernet cable plugged into the docking station the laptop will turn off its WiFi
  • The docking station comes with a power cable (thus you don’t have to sacrifice your laptops power cable or buy an additional one!)
  • Even though only one of the front ports is ‘always on’ powered the second port has no issues in powering up and running a 500GB Freecom USB Hard Disk Drive.

Stress test

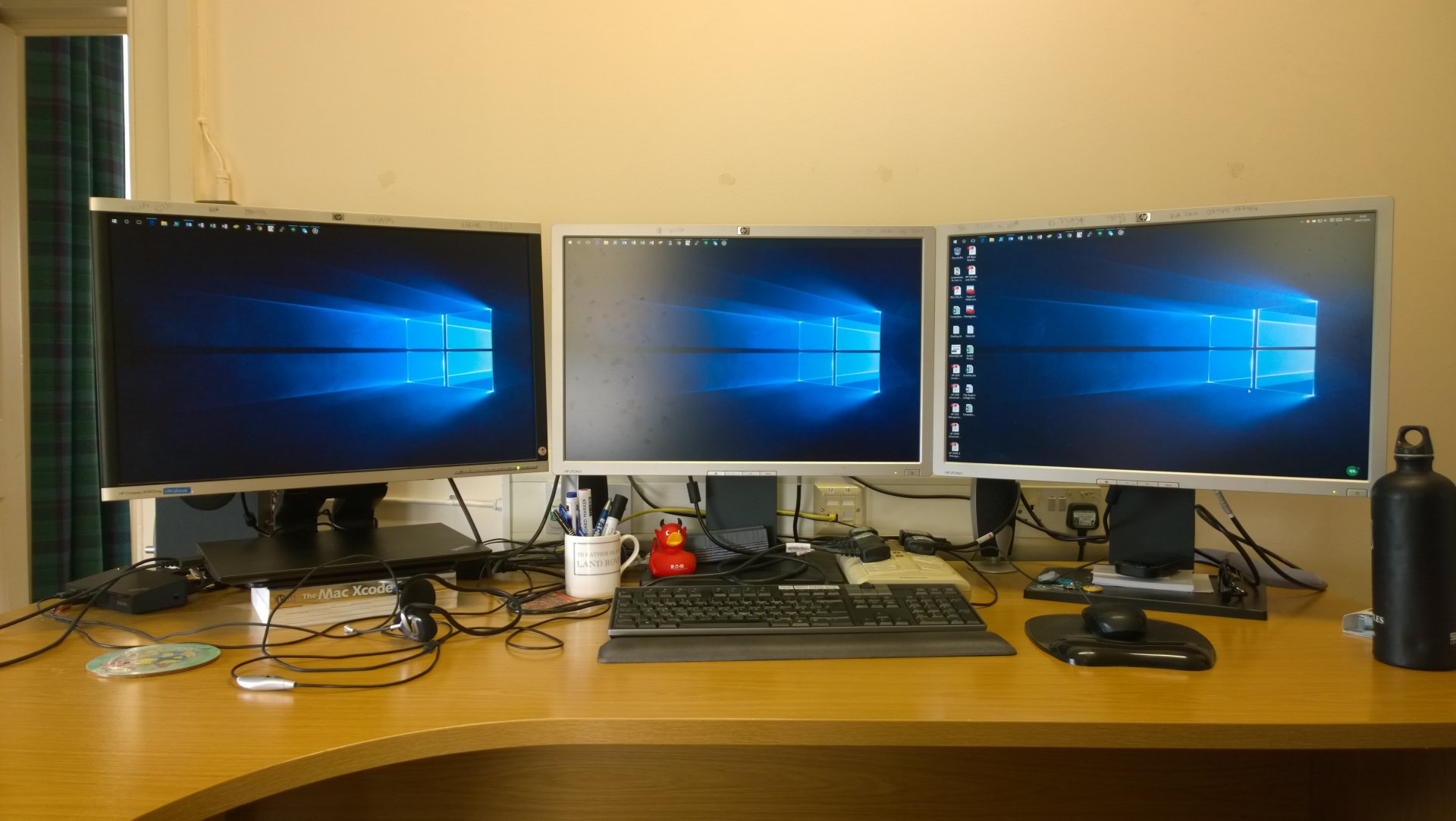

So as you will have seen from the photos this screen has no issue in running 3x screens; but what about 3x screens while running a video on each screen, hammering the USB 3.0 port on the front running Crystal Disk Mark to a USB HDD, with audio streaming and my phone on charge? I certainly couldn’t notice any issue and the CPU on the X1 stayed below 22% through the test.

Heat/fan noise?

In the past I’ve seen docks like these kick out a fair amount of heat (when under load in particular) and while you can feel some heat from the OneLink+ dock it really isn’t much at all (only a few more degrees Celsius above its ‘off state’). In addition some laptops seem to ramp up their internal fan when attached to a dock – in this case the X1 Carbon behaves and under ‘productivity tasks’ I couldn’t notice the fan noise at all.

Final Verdict

I would prefer to see the VGA port replaced with a further display port (on high resolution screens VGA really does not work well) the Lenovo ThinkPad OneLink+ Dock really is an excellent bit of kit; not once have I looked back on my desktop and having extra desk space is just an added bonus.

VN:F [1.9.22_1171]
Thumbs up if this article helped you 🙂
Rating: +6 (from 6 votes)
Lenovo ThinkPad OneLink+ Dock Review, 100% based on 6 ratings

2 Responses to Lenovo ThinkPad OneLink+ Dock Review

  • Diego says:

    what is the resolution on the monitors you are using?
    when I connect a 4K monitor it does not permit a 2nd one (as per the manual):

    Notice: As long as you attached a 4K monitor to the dock, regardless what
    resolution you set up, your display capability is limited to single external monitor
    output. It`s not supported to attach a second monitor.
